TOF 3D – Neuromuscular Monitor

The all-rounder among neuromuscular monitors that meets all anesthesia requirements.

Application:

1. Different positions of the acceleration transducer possible.
2. Impedance monitoring for optimal stimulation.
3. Automatic calibration function for individual stimulus response.
4. Automatic measuring cycles can be set.
5. Use of standard electrodes.

Technical components:

1. Different stimulation modes: TOF, PTC, TET, Single Twitch, Double Burst.
2. 3-dimensional acceleration measurement.
3. With standard AA batteries: more than 1500 hours of continuous operation.

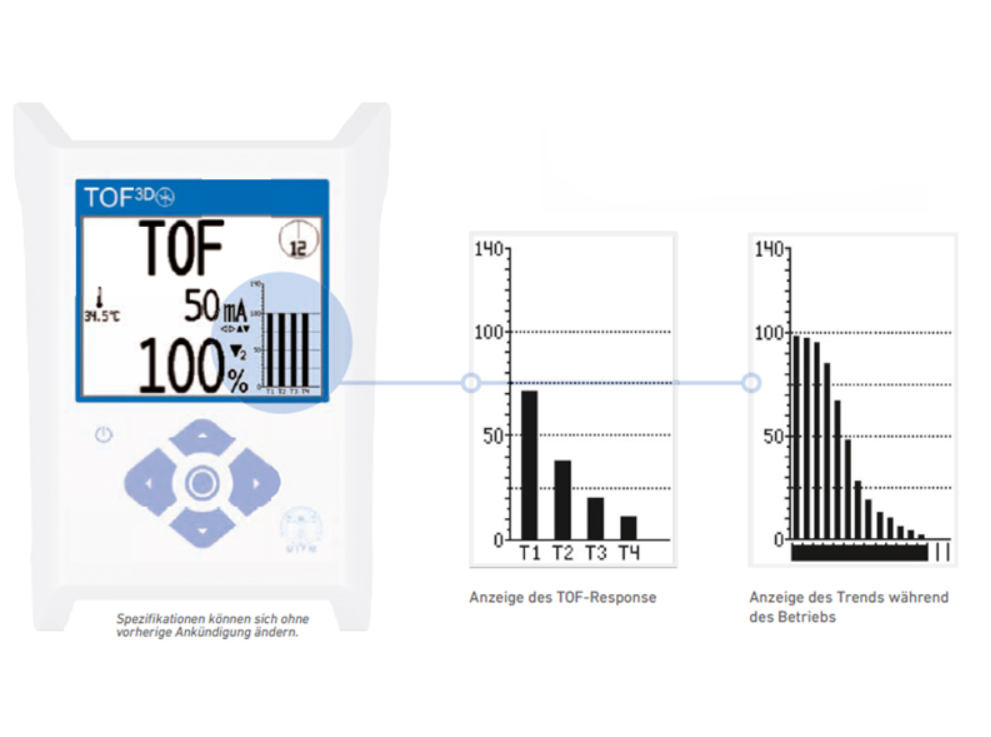

4. Large 4.4 inch LCD display.
5. Integration and operation possible via other patient monitors* and hospital networks.
6. Placement on the table, on the IV stand and on the standard rail.
7. Measurement of skin surface temperature.
8. Automatic patient-related measured value storage on the device or transferable to external devices.
9. Alert management: Setting the lower and upper alarm limits for TOF levels.

* Depends on monitor type

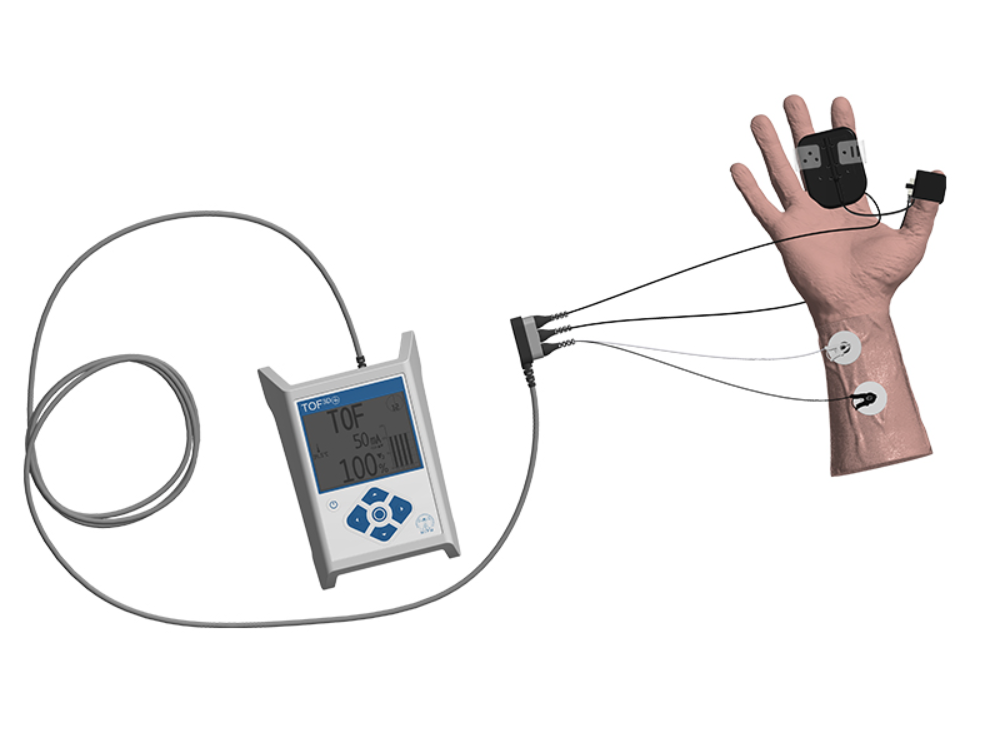

Easy placement of all adhesive electrodes – reliable measurement!

1. Use of standard electrodes.
2. Impedance monitoring for optimal stimulation.
3. Different positions of the acceleration transducer possible.
4. Automatic calibration function for individual stimulus response (can be freely selected by the user).
5. Automatic measuring cycles can be set.
