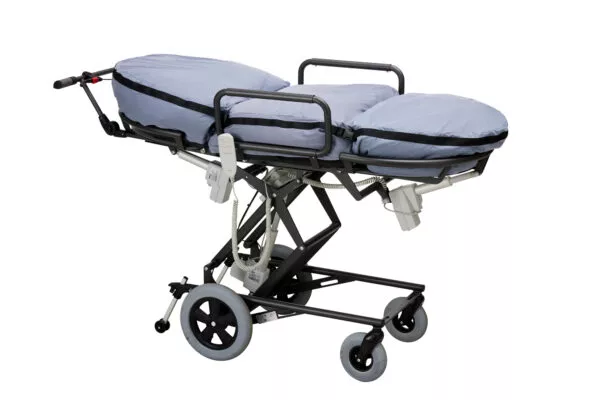

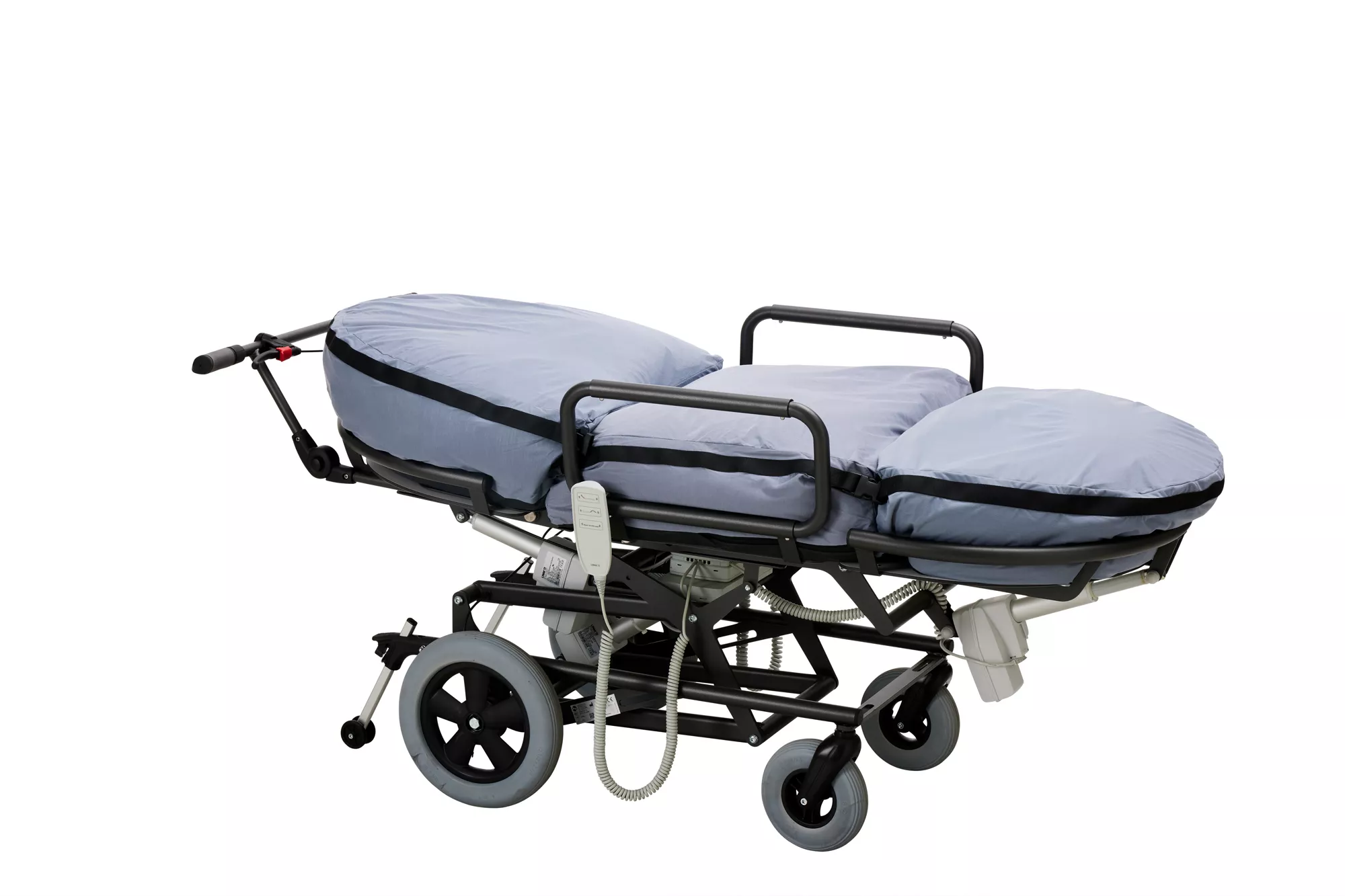

Lasal MobiBed means the user can be both mobile and social.
The transporter can be used for resting, stabilising, supporting and yes of course, to transport the user around indoors. It creates many positioning options and is easy to adjust.
– Children, young adults and adults with highly reduced
functional ability
– People who have difficulty sitting in the same position long
periods of time
– People with deformities, e.g. in the back or hip
– People with low muscle tone
– People who need to change position regularly, sitting down or lying down.
Regardless of any reduction in functional ability – and regardless of how few resources an individual has – all children and adults love to be part of the group. Immobile persons often experience that they are socially excluded. With a Lasal MobiBed the user can be both mobile and social. The personal transporter is used for resting, stabilising, supporting and transport indoors. It creates many positioning options and is easy to adjust. These options allow user to participate in activities, both in a reclining or sitting down position.

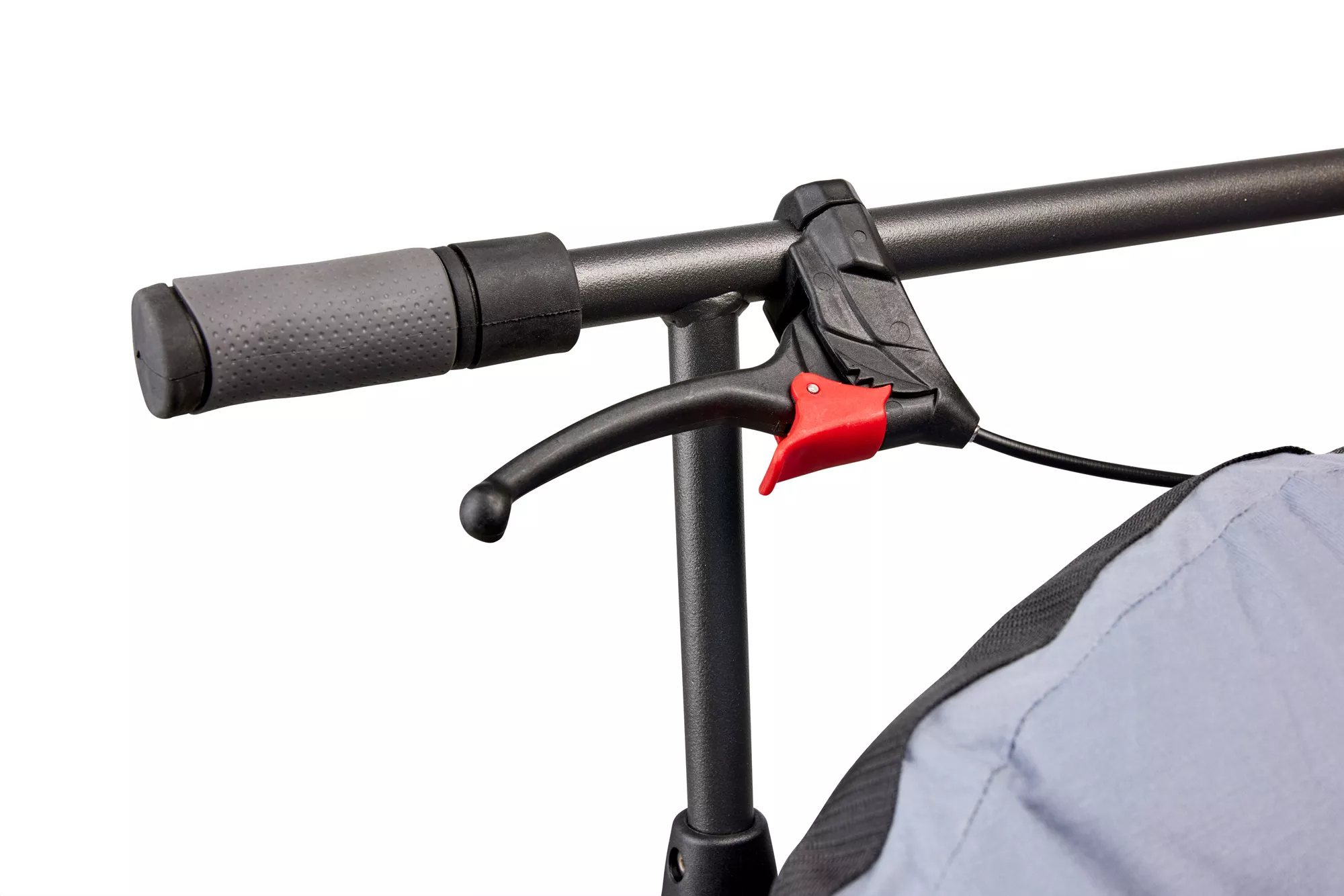

Lasal MobiBed is simple to adjust and operate with electrically driven adjustment of height, and back and foot support. The caretaker’s working posture is improved significantly because of the height adjustment. There are three length settings in the back section and three in the seat section, which allows up to nine length positions. The MobiBed also comes with step adjustable handlebar and with parking brake on the handlebar.
The personal transporter is not suitable for use outdoors, though it can be used on terraces and other similar paved level surfaces.
We provide several products as accessories for positioning the user in Lasal MobiBed, among others insert cushions, which can be put together using clasps and visco elastic mattress with removable cover.
As a supplement for the insert cushions, we also provide a large range of positioning cushions Combined the insert cushions and the positioning cushions allow a unique positioning for each user.
The insert cushions are available in several sizes and models. The insert cushions are made from comfortable materials and have removable and washable outer covers. The core insert cushions have a water-repellent and antibacterial polyester cover.
In addition, the modules are equipped with a zip, so that the core filling can be varied as required. The removed filling is stored in a fabric bag. Since the small beads can easily spill out, it is recommenced that when removing them, a sheet is placed below the cushion.
The MobiBed is not crashtestet.
Max. length with handlebar and foot support fully extended | 2150 mm |
Max. width of Mobilia MobiBed measured across cushion frame bar | 720 mm |
Height of cushion frame measured from floor to top of bar Lowest position Highest position | 550 mm -> 830 mm |
Cushion frame length (adjustable) Min. length Max. length | 1460 -> 1830 |
Max. reclining dimension fully extended: with Mobilia Mattress (person height max. 172 cm) with Mobilia Module insert cushion (person height max. 180 cm) | 1835 mm 1930 mm |
Wheel base between front and rear wheel measured from the middle of axle to middle of axle | 720 mm |
Total weight without insert cushion | 55 kg |
Load capacity Safety tested to | 120 kg |
Utilisation weight (max. person weight) recommended | 90 kg |
Front wheel diameter | 200 mm |
Rear wheel diameter | 300 mm |
Actuator, motor, lift, back tilt and leg tilt – LINAK LA40-100 24 V | Load 4000 N |
Control box – LINAK CA40 – SMPS – IPX6 | 24V |
Built-in charger in control box. To charge connect: | 100V/240V |
Manual control LINAK HB83 3-way | |
Minimum dimension, e.g. when packing for transport: The transporter is folded together and lowered to the lowest position. The back is raised to maximum, the foot support is in the lowest position and the handlebar is pushed fully forward. | Length: 1340 mm Width: 720 mm Height: 1070 mm |
